redistribution between EIGRP and OSPF

Written by Post Comment

How to configure redistribution between EIGRP and OSPF on packet tracer?

Today we will learn that how to configure redistribution between EIGRP and OSPF. As we know that redistribution work to communicate between two different routing process. It's help to resolve network problem. we need to aware that what should be configure before implement redistribution betweeen EIGRP and OSPF and our network concept also.


Router0>en
Router0#config t
Router0(config)#int fa 0/0
Router0(config-if)#ip add 10.0.0.1 255.0.0.0
Router0(config-if)#no sh
Router0(config)#router eigrp 100
Router0(config-router)#net 10.0.0.0
Router0(config-router)#do wr

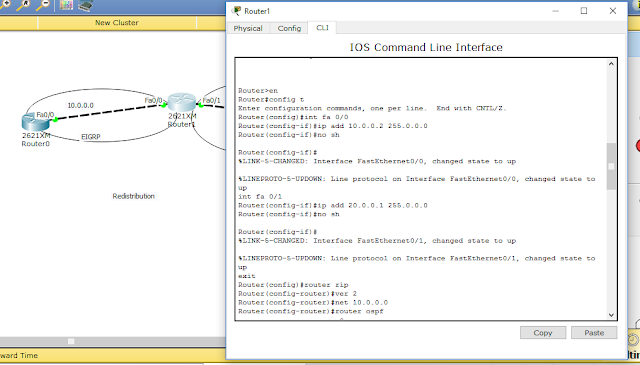

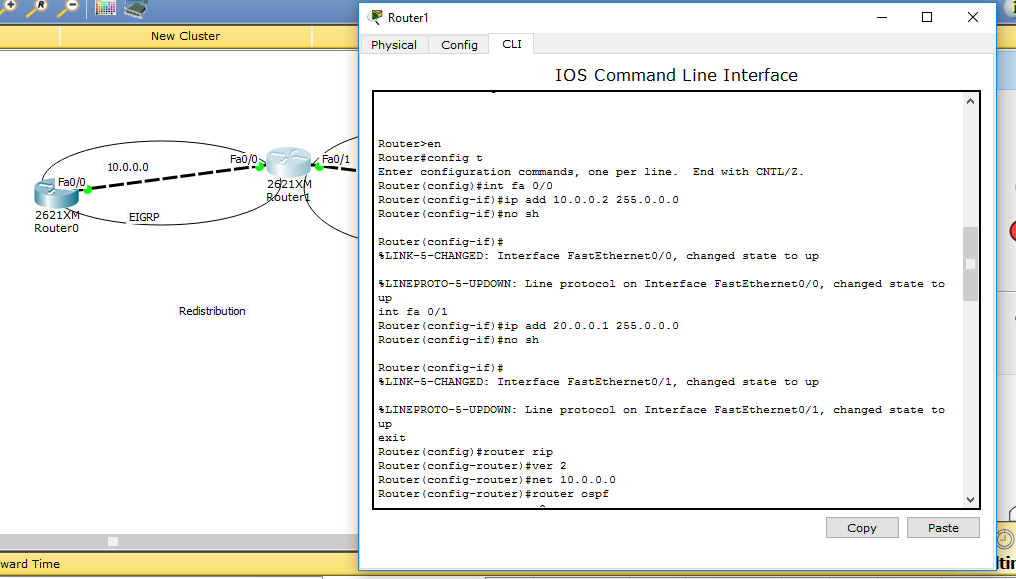

Router1>en
Router1#config t
Router1(config)#int fa 0/0
Router1(config-if)#ip add 10.0.0.2 255.0.0.0
Router1(config-if)#no sh
Router1(config-if)#int fa 0/1
Router1(config-if)#ip add 20.0.0.1 255.0.0.0
Router1(config-if)#no sh
Router1(config-if)#exit
Router1(config-router)#router ospf 1
Router1(config-router)#net 20.0.0.0 0.0.0.255 area 0
Router1(config-router)#router eigrp 100
Router1(config-router)#net 10.0.0.0
Router1(config-router)#router eigrp 100
Router1(config-router)#red
Router1(config-router)#redistribute ?
bgp Border Gateway Protocol (BGP)
connected Connected
eigrp Enhanced Interior Gateway Routing Protocol (EIGRP)
metric Metric for redistributed routes
ospf Open Shortest Path First (OSPF)
rip Routing Information Protocol (RIP)
static Static routes
Router1(config-router)#redistribute ospf ?
<1-65535> Process ID
Router1(config-router)#redistribute ospf 1 ?




match Redistribution of OSPF routes
metric Metric for redistributed routes
<cr>
Router1(config-router)#redistribute ospf 1 metric ?
<1-4294967295> Bandwidth metric in Kbits per second
Router1(config-router)#redistribute ospf 1 metric 150000 ?
<0-4294967295> EIGRP delay metric, in 10 microsecond units
Router1(config-router)#redistribute ospf 1 metric 150000 ?
<0-4294967295> EIGRP delay metric, in 10 microsecond units
Router1(config-router)#redistribute ospf 1 metric 150000 10 ?
<0-255> EIGRP reliability metric where 255 is 100% reliable
Router1(config-router)#redistribute ospf 1 metric 150000 10 255 ?
<1-255> EIGRP Effective bandwidth metric (Loading) where 255 is 100% loaded
Router1(config-router)#redistribute ospf 1 metric 150000 10 255 100 ?
<1-65535> EIGRP MTU of the path
Router1(config-router)#redistribute ospf 1 metric 150000 10 255 100 1500 ?
match Redistribution of OSPF routes
<cr>
Router1(config-router)#redistribute ospf 1 metric 150000 10 255 100 1500
Router1(config-router)#router ospf 1
Router1(config-router)#redi
Router1(config-router)#redistribute eigrp ?
<1-65535> Autonomous system number
Router1(config-router)#redistribute eigrp 100 ?
metric Metric for redistributed routes
metric-type OSPF/IS-IS exterior metric type for redistributed routes
subnets Consider subnets for redistribution into OSPF
tag Set tag for routes redistributed into OSPF
<cr>
Router1(config-router)#redistribute eigrp 100 metric ?
<0-16777214> OSPF default metric
Route1r(config-router)#redistribute eigrp 100 metric 1 ?
metric-type OSPF/IS-IS exterior metric type for redistributed routes
subnets Consider subnets for redistribution into OSPF
tag Set tag for routes redistributed into OSPF
<cr>
Router1(config-router)#redistribute eigrp 100 metric 1 subnets ?
tag Set tag for routes redistributed into OSPF
<cr>
Router1(config-router)#redistribute eigrp 100 metric 1 subnets
Router1(config-router)#do wr
Building configuration...
[OK]




Router2>en
Router2#config t
Router2(config)#int fa 0/1
Router2(config-if)#ip add 20.0.0.2 255.0.0.0
Router2(config-if)#no sh
Router2(config)#router ospf 1
Router2(config-router)#net 20.0.0.0 0.0.0.255 area 0
Router2(config-router)#do wr
